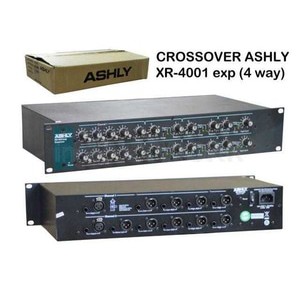

crossover aktif ashly XR4001 / XR 4001 – 4 way

Product Features

24 dB/octave slope using fourth-order state-variable filters.

Controls

Input Level: Full-off to +8dB

Crossover Frequency: 400Hz-8kHz (40Hz-800Hz*) (L-LM, LM-HM); 1.2kHz-24kHz (120Hz-2.4kHz*) (HM-H)

* using divide by 10 range switch

Range Switch: divides crossover freq. by 10

Response: -1.5dB to -12dB at crossover point

Output Level: Full-off to +15dB

Input Impedance

20k Ohms, balanced bridging

Output Impedance

200 Ohms, quasi-balanced (terminate with >600 Ohms)

Max. Input Level

+23dBu

Max. Output Level

+23dBu

Frequency Response

+/-.5dB 20Hz-20kHz

Total Harmonic Distortion (THD)

<.05% 20Hz-20kHz

Slew Rate

6V/uS

Hum and Noise

-90dBu

Power Requirements

120VAC, 50-60Hz, 5W

Size (W x H x D)

19 x 3.5 x 6 in.

Produk termasuk rawan rusak saat pengiriman , untuk itu disarankan memesan peti kayu pada etalase product. Atau akan menggunakan paking standar kardus atau plastik bubble.
