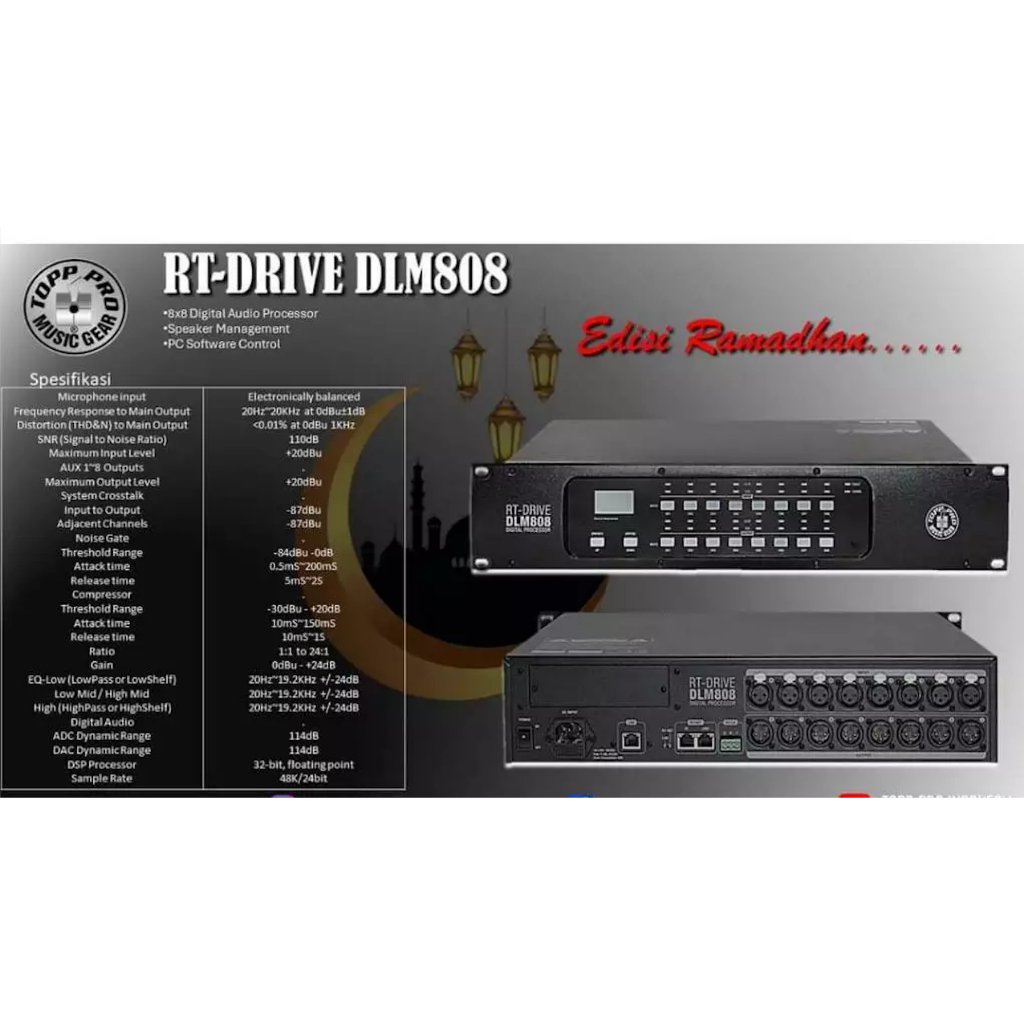

MANAGEMENT SPEAKER DLMS TOPP PRO DLMS 808 DIGITAL / DLMS808 DIGITAL RT DRIVE – ORIGINAL

Microphone input Electronically balanced

Frequency Response to Main Output 20Hz~20KHz at 0dBu1dB

Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz

SNR (Signal to Noise Ratio) 110dB

Maximum Input Level +20dBu

AUX 1~8 Outputs .

Maximum Output Level +20dBu

System Crosstalk .

Input to Output -87dBu

Adjacent Channels -87dBu

Noise Gate .

Threshold Range -84dBu -0dB

Attack time 0.5mS~200mS

Release time 5mS~2S

Compressor .

Threshold Range -30dBu - +20dB

Attack time 10mS~150mS

Release time 10mS~1S

Ratio 1:1 to 24:1

Gain 0dBu - +24dB

EQ-Low (LowPass or LowShelf) 20Hz~19.2KHz +/-24dB

Low Mid / High Mid 20Hz~19.2KHz +/-24dB

High (HighPass or HighShelf) 20Hz~19.2KHz +/-24dB

Digital Audio .

ADC Dynamic Range 114dB

DAC Dynamic Range 114dB

DSP Processor 32-bit, floating point

Sample Rate 48K/24bit
