SOUNDBEST MICROPHONE WIRELESS VICTORY UHF (Nirkabel)

MICROPHONE WIRELESS VICTORY

SPECIFICATION :

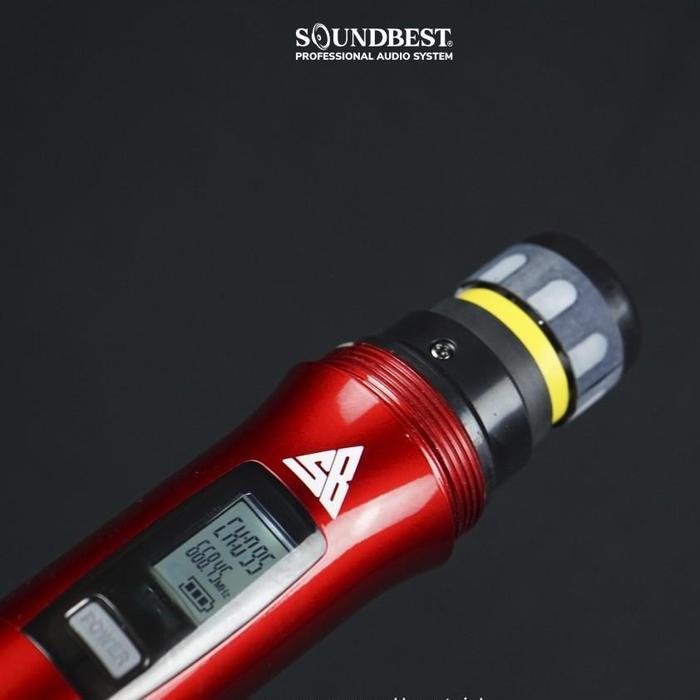

TRANSMITTER (Hand-Held)

RF generation and control : PLL

Frequency Ranges : UHF 640-690MHz

switching banwidth : max. 60MHz

channel grid : 250 KHz

RF Power output : 8-10mW

Nominal/peak deviation : 24KHzcurrent loss : use range : 60m(ideal)

pickup : dynamis or condenser

battery : 1.5V*2

power life : 5--7h

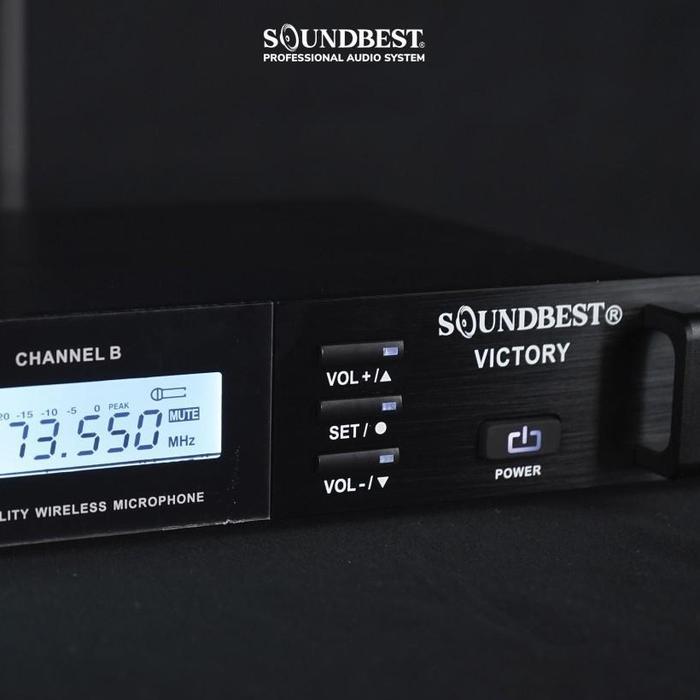

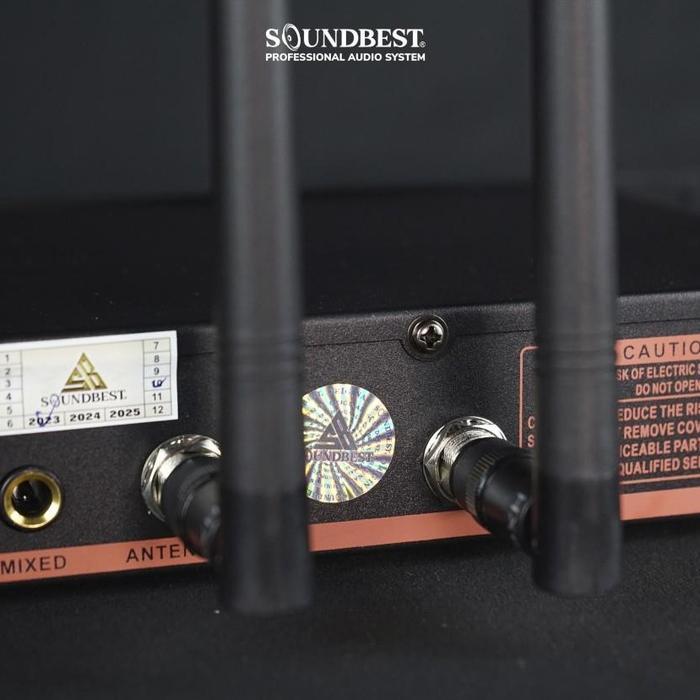

RECEIVER

Sensitivity : 2uV(signal=12dB)

Swittching bandwidth : max. 60 MHz

Receiving channel : 200

channel spacing : >250 KHz

spurious rejection : >80dB

image rejection : >80dB

SNR : >90dB

AF output : 0--300mV

receiving channel : two channel

power : DC12--18V

power consumption : 5W
