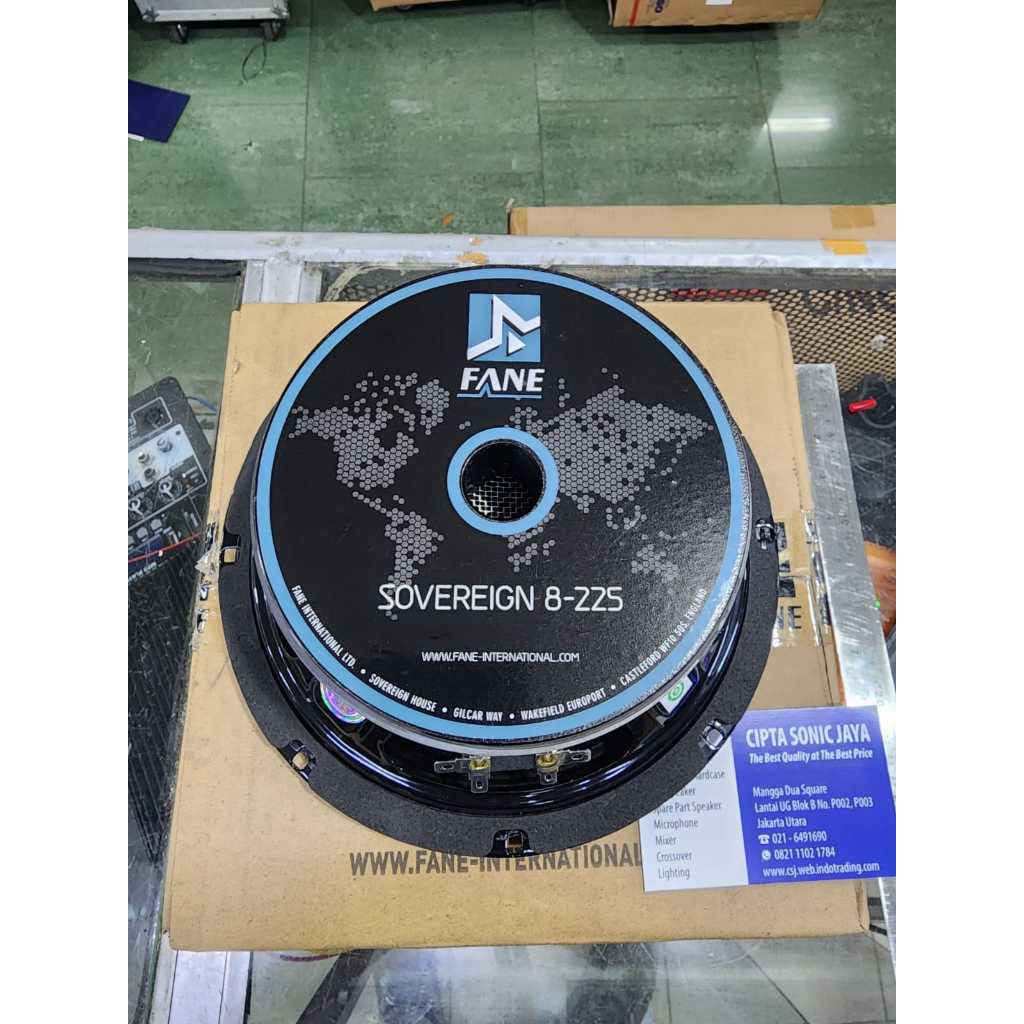

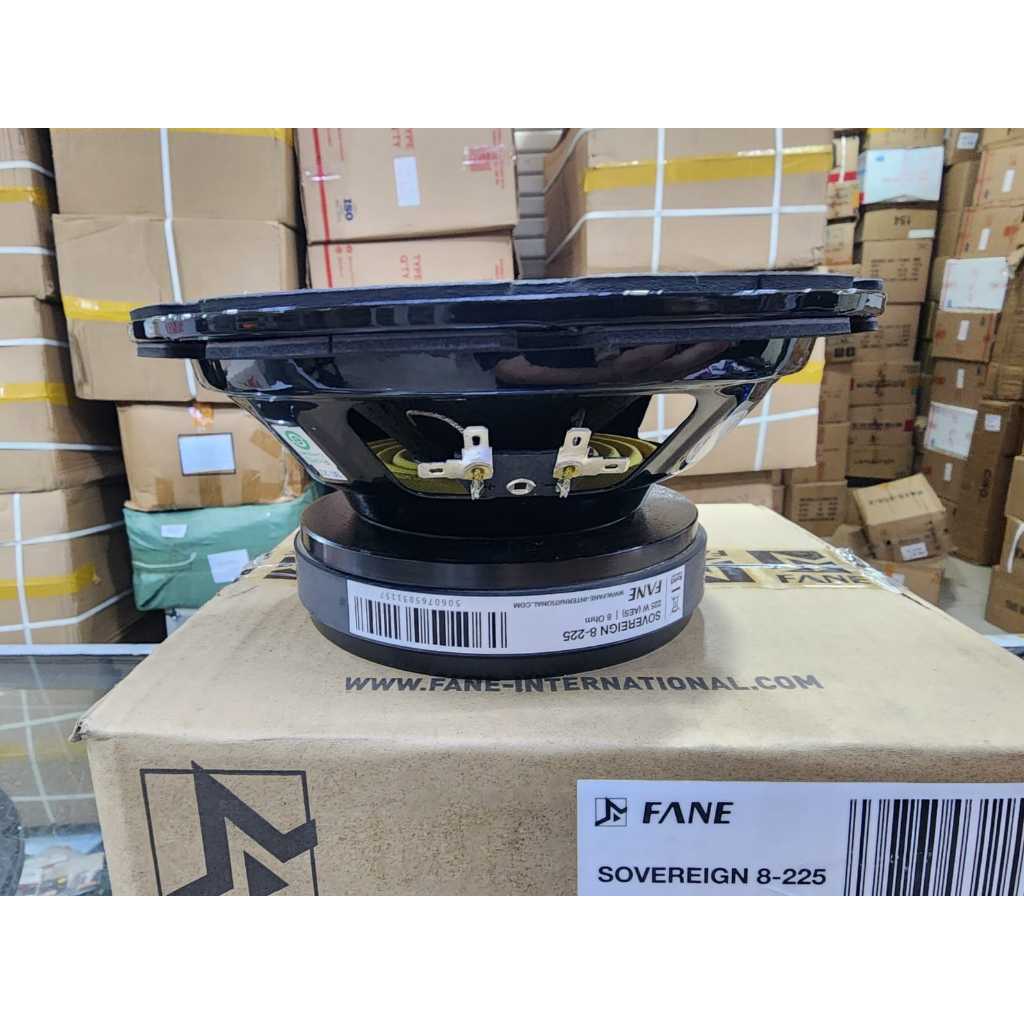

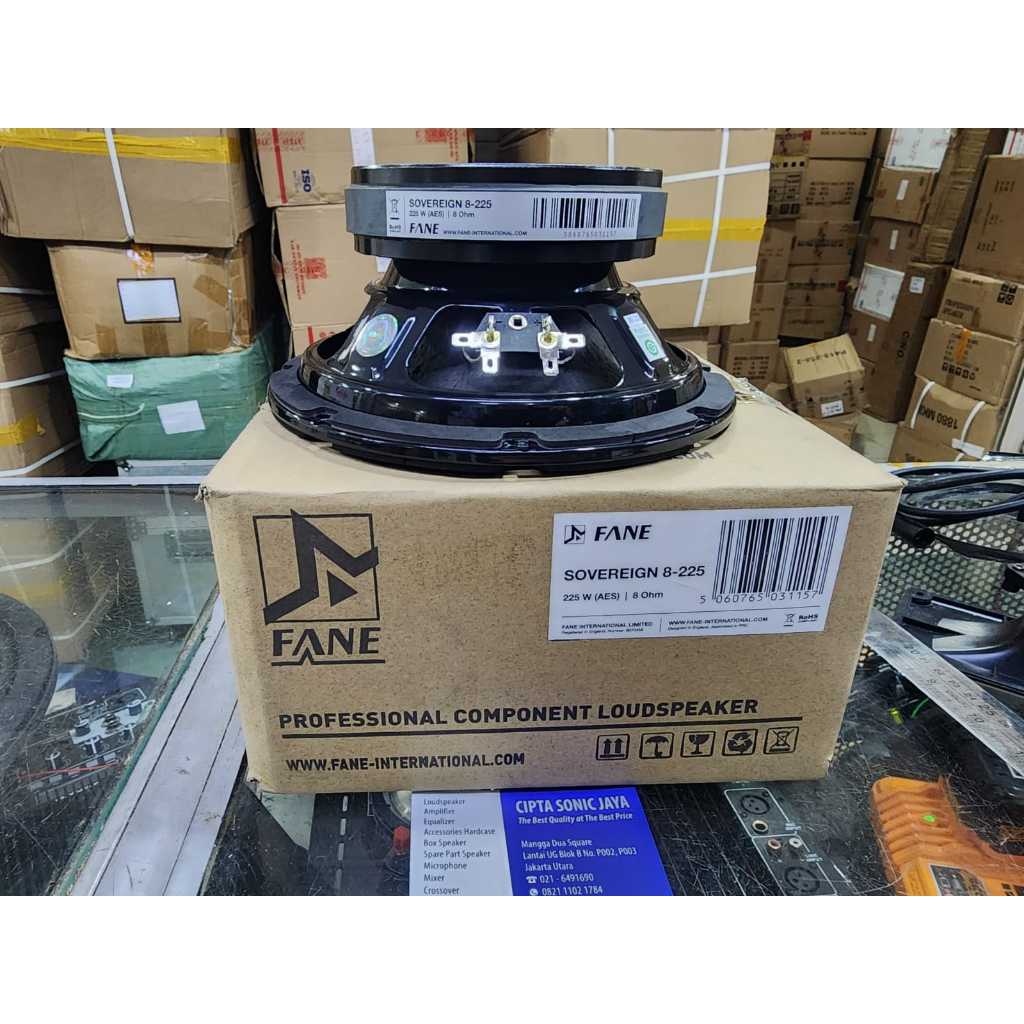

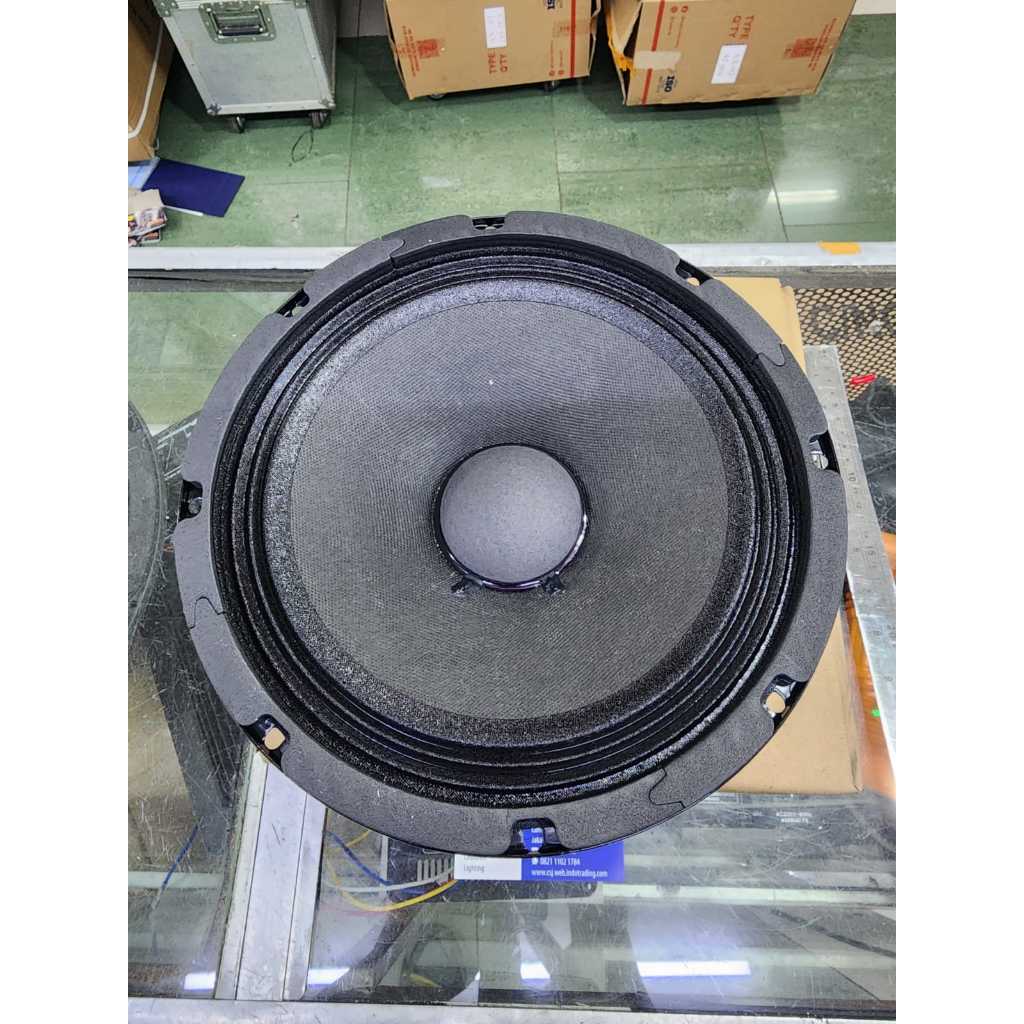

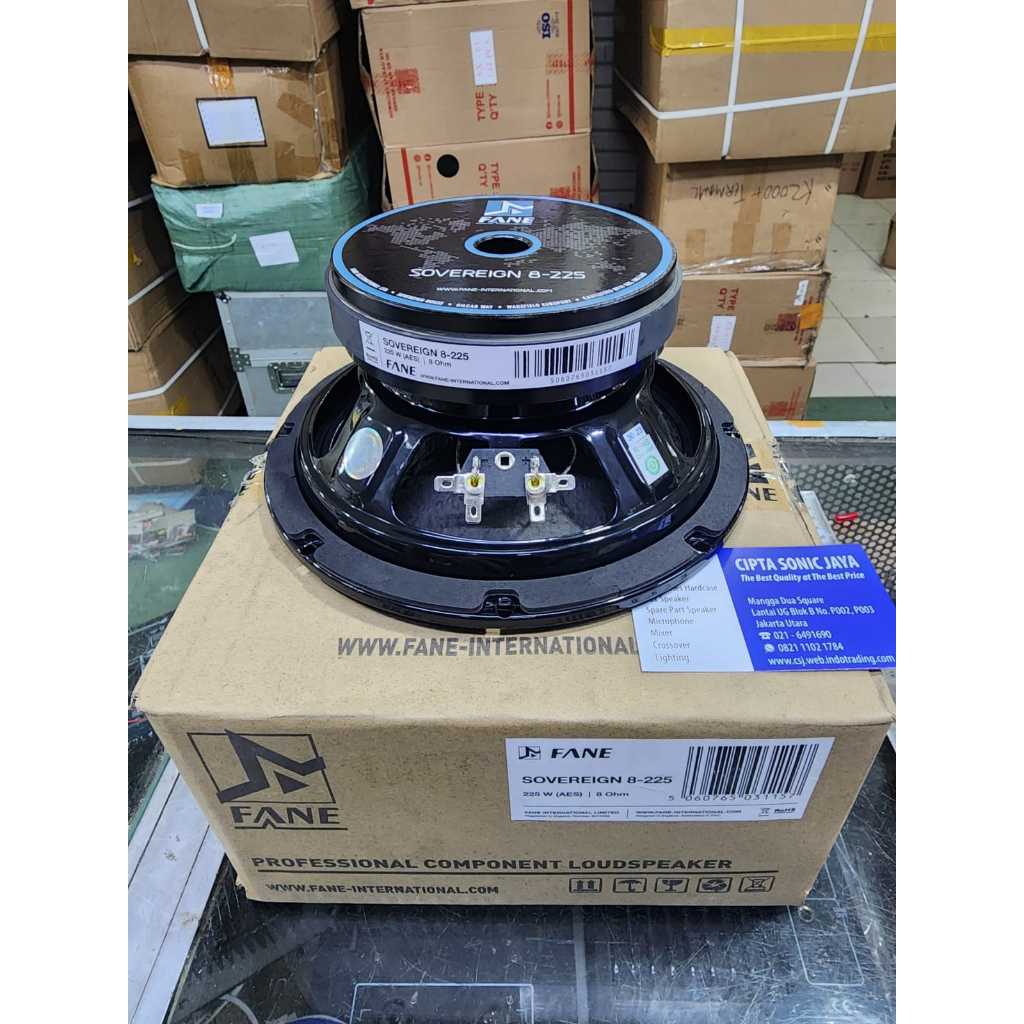

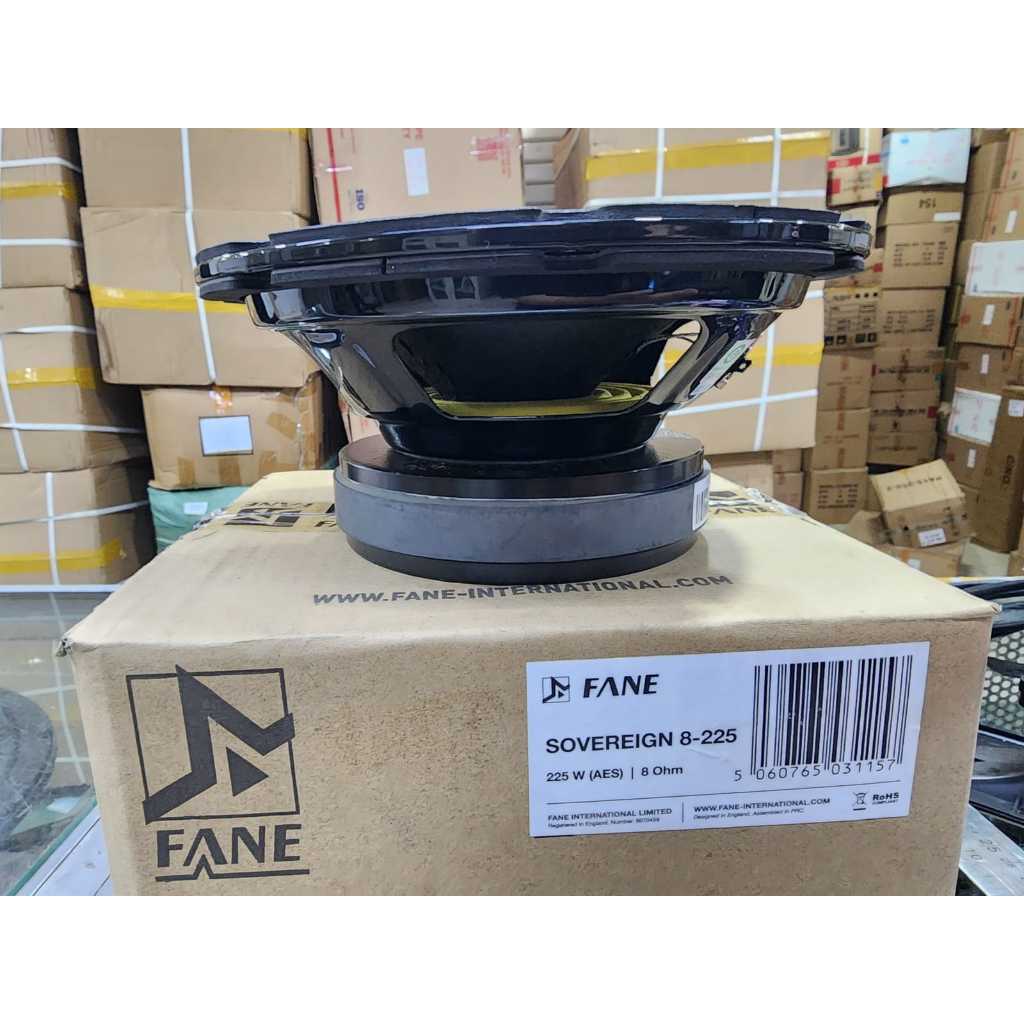

Komponen Speaker FANE 8-225 8 Inch 450W Original Resmi

SOVEREIGN 8-225

BASS / MID RANGE DRIVER

Features :

450 W Program Power.

97 dB Sensitivity (1W/1m).

High-power driver ideal for use in pro-sound and bass-guitar applications.

Superb vocal coverage and coherence when deployed in small format line array.

Exceptional efficiency, power handling and frequency coverage from compact design.

Smooth and refined tone with extended usable frequency up to 5 kHz.

Excellent for compact two-way PA cabinets.

Performs best as a mid-range unit in small sealed enclosures as part of a larger system.

Works well as a mid/ bass driver in vented enclosures.

2-inch Copper voice coil.

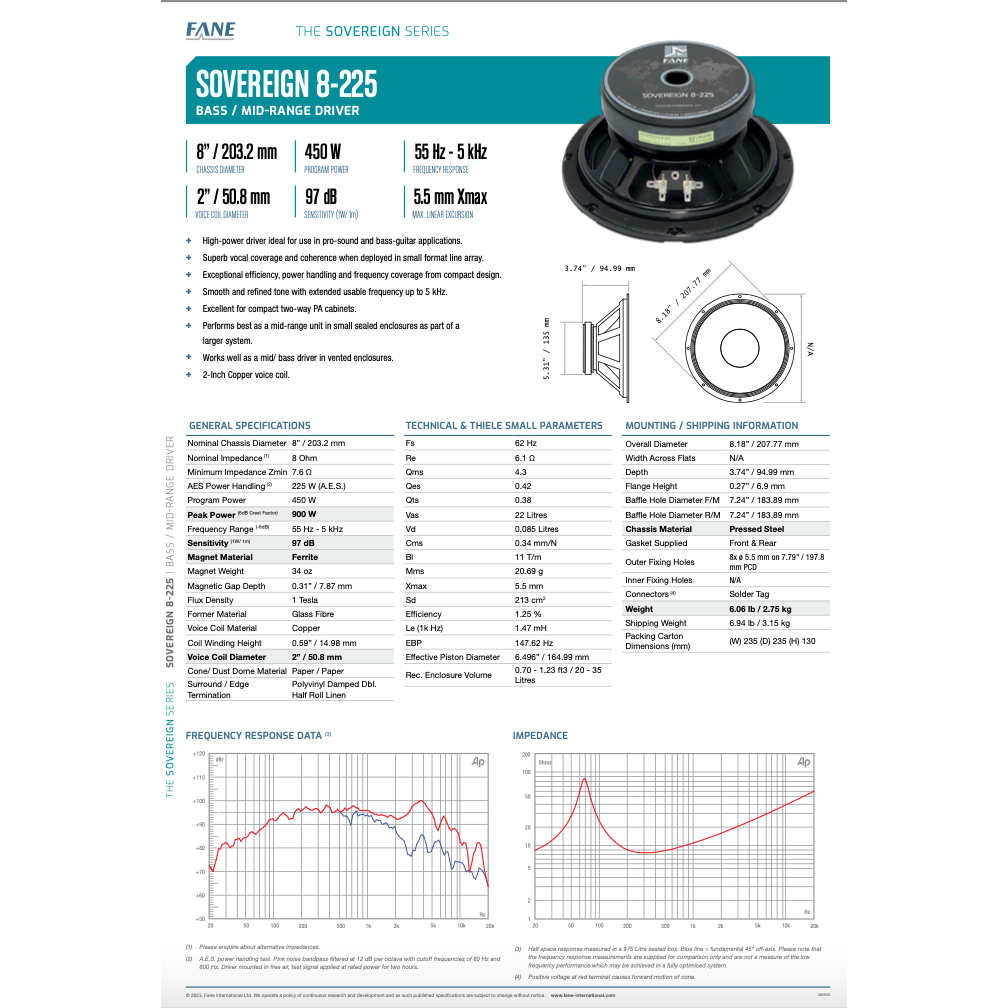

Electro Acoustic Specifications

Nominal Chassis Diameter 8" / 203.2 mm

Impedance 8 Ω

Power Handling 225 W (A.E.S.)

Peak Power (6dB Crest Factor) 900 W (A.E.S.)

Usable Frequency Range (-6dB) 55 Hz - 5 kHz

Sensitivity (1W - 1m) Wideband 97 dB

Moving Mass (inc. Air Load) 20 grams

Minimum Impedance (Zmin) 7.6 Ω

Effective Piston Diameter 6.496" / 164.99 mm

Magnet Weight 34 oz

Magnetic Gap Depth 0.31" / 7.87 mm

Flux Density 1.0 Tesla

Coil Winding Height 0.59" / 14.98 mm

Voice Coil Diameter 2.0" / 50.8 mm

Speaker Type Bass / Mid Range Driver

Speaker Series The Professional Series

Program Power 450 W (A.E.S.)

Sensitivity (1W / 1m) Working band
