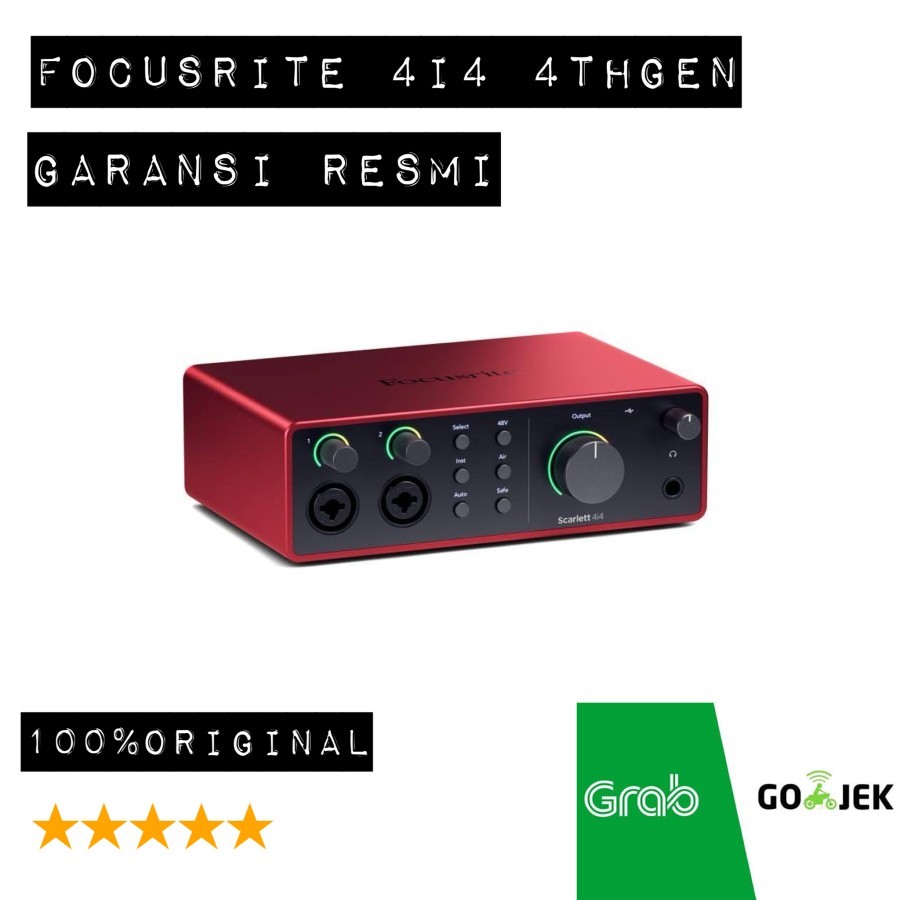

Focusrite Scarlett 4i4 4th Gen
USB Audio Interface
100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN
SPECIFICATIONS
•Number of Microphone Preamps: 2
•Phantom Power: Yes
•Instrument Inputs: 2
•Line Inputs: 4
•Air Mode: Yes
•Auto Gain: Yes
•Clip Safe: Yes
•Line Outputs: 4
•Headphone Outputs: 1
•Loopback: Yes
•MIDI: Yes
•Connectivity: USB Type-C
•Protocol: USB 2.0
•Form Factor: Desktop
•Simultaneous I/O:
6 x 6 (including Loopback inputs)
•A/D Resolution: 24-bit/192 kHz
•Bus Powered: Yes (1.5A)
•Supported sample rates:
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Microphone inputs
•Frequency Response:
20-20kHz ± 0.06dB
•Dynamic Range:
116dB (A-Weighted)
•THD+N: -100dB @ 8dB gain
•Noise EIN:
-127dBu (A-Weighted)
•Maximum Input Level: 16dBu
•Gain Range: 69dB
•Impedance: 3kΩ
Variable Line inputs
•Frequency Response:
20-20kHz ± 0.05dB
•Dynamic Range:
115.5dB (A-Weighted)
•THD+N: -100dB @ 8dB gain
•Maximum Input Level: 22dBu
•Gain Range: 69dB
•Impedance: 60kΩ
Fixed Line inputs
•Frequency Response:
20-20kHz ± 0.02dB
•Dynamic Range:
115.5dB (A-Weighted)
•THD+N: -105dB
•Maximum Input Level: 22dBu
•Impedance: 60kΩ
Instrument inputs
•Frequency Response:
20-20kHz ± 0.15dB
•Dynamic Range:
113dB (A-Weighted)
•THD+N: -80dB @ minimum gain
•Maximum Input Level: 12dBu
•Gain Range:,62dB
•Impedance: 1MΩ
Line outputs (Balanced)
•Frequency Response:
20-20kHz ± 0.02dB
•Dynamic Range: 120dB
•THD+N: -112dB
•Maximum Output Level:,16dBu
•Impedance: 100Ω
Headphone outputs
•Frequency Response:
20-20kHz ± 0.1dB @ 33Ω / 300Ω
•Dynamic Range:
112dB @ 33Ω
115dB @ 300Ω
•THD+N:
-99dB @ 33Ω
-108dB @ 300Ω
•Maximum Output Level:
5dBu into 33Ω
11dBu into 300Ω
•Maximum Output Power:
57mW into 33Ω
27mW into 300Ω
•Impedance: 11Ω
Analogue to Digital Converter
•THD+N: -110dB
•Dynamic Range: 120dB
Digital to Analogue Converter
•THD+N: -115dB
•Dynamic Range:
130dB (A-Weighted)
Power
•USB:,1.5A
•External (Optional): 7.5W
