Digital Speaker Management DBX PA 2 DriveRack PA2

DBX PA 2 DriveRack Management Speaker

Info Produk

alat ini sudah berfungsi sebagai crossover, tone kontrol, equaliser, efek. sehingga sound system anda dapat ditata sedemikian rupa untuk menghasilkan suara sesuai kebutuhan anda. cocok untuk anda yang menginginkan kepraktisan dalam setting panggung

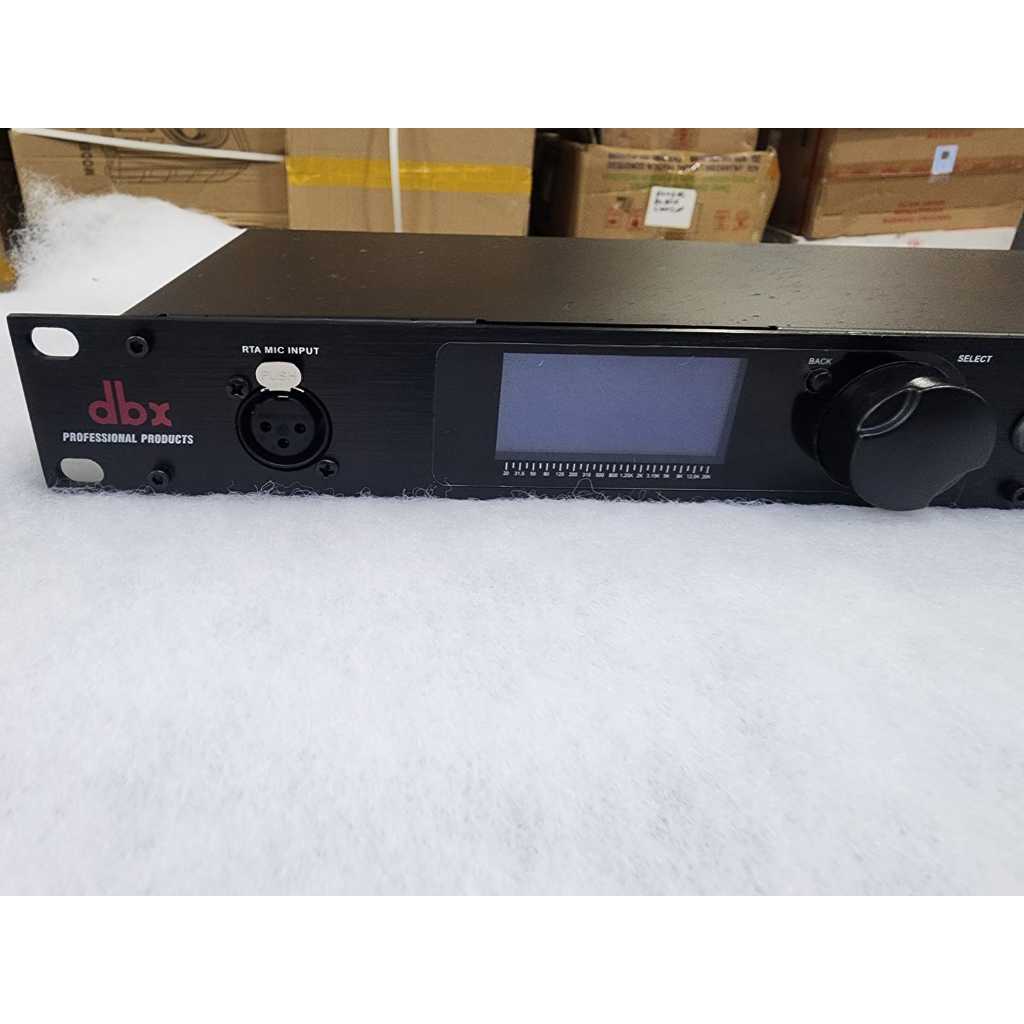

(2) line inputs. (1) RTA Mic input

Input Connectors (2) Female XLR line inputs. (1) Female XLR RTA Mic input

Input Type Electronically balanced/RF filtered

Input Impedance >50 kohm

A/D Converter dbx Type IV Conversion System

CMRR 45dB

Mic Preamp Phantom Power +15VDC (RTA)

Mic Preamp Equivalent Input Noise (EIN) ; -117dB, 22Hz-22kHz, 150 ohm (RTA)

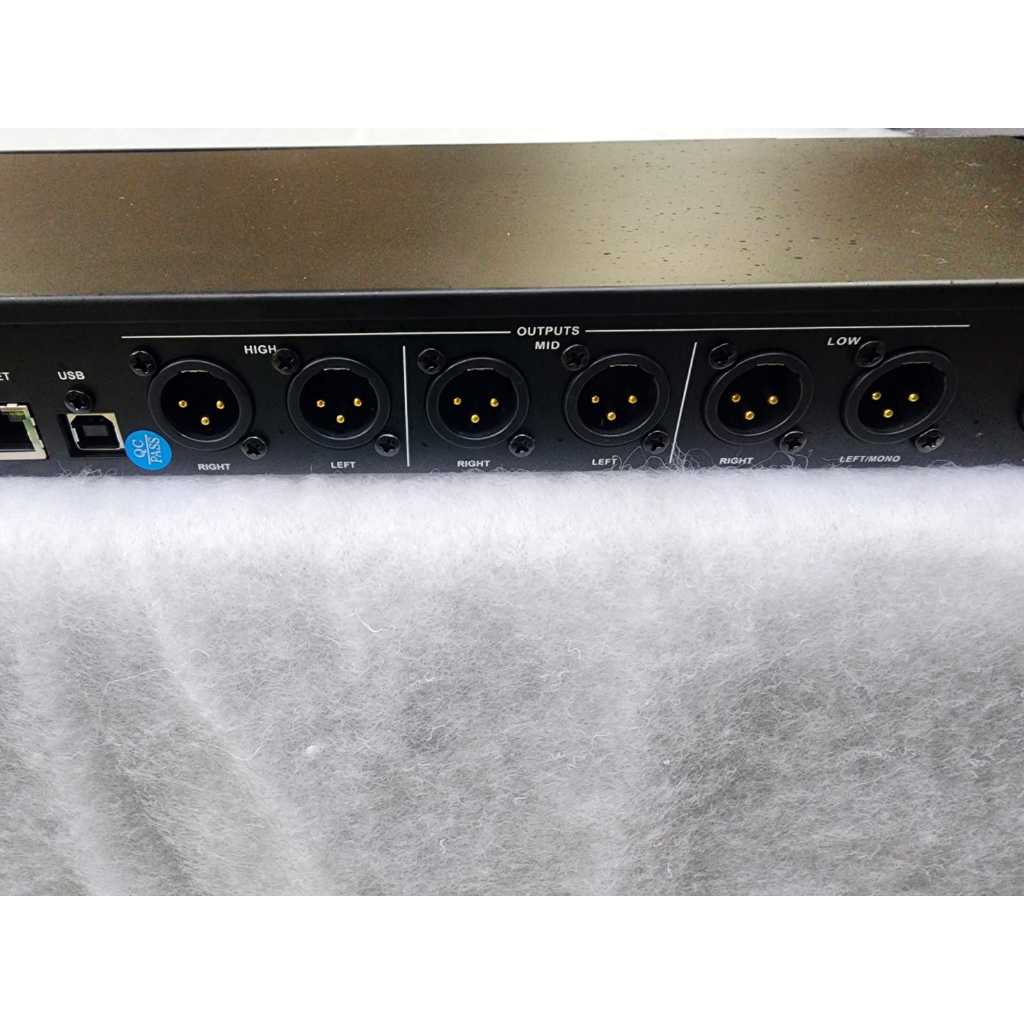

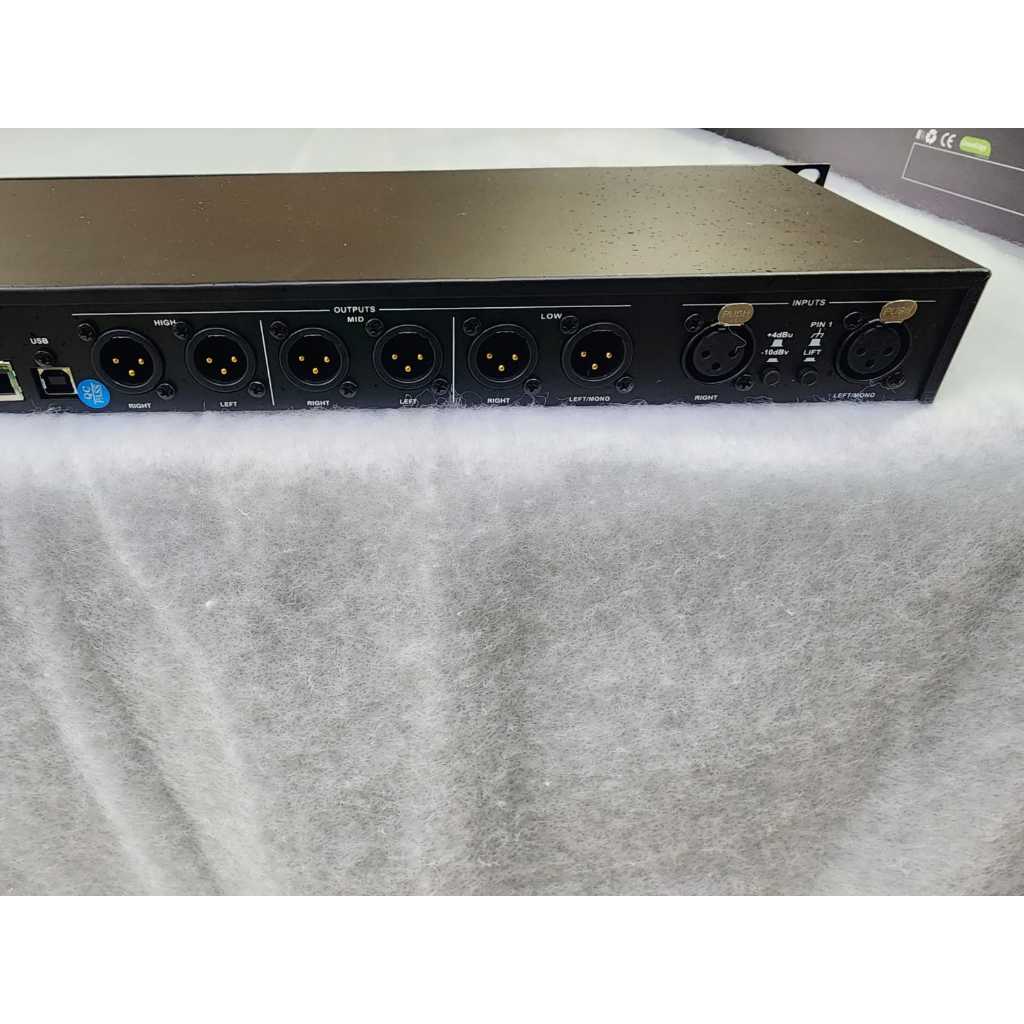

Output (6) Line Outputs

Output Connectors Male XLR

Output Type Electronically balanced, RF filtered

Output Impedance 120

Max Output +20dBu

A/D Dynamic Range 112 dB A-weighted, 110 dB unweighted

Type IV Dynamic Range 123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW

Input Delay Length 100ms

Alignment Delay 10ms per channel (60ms total)

Sample Rate 48kHz

Dynamic Range ;110 dB A-weighted, ;107dB unweighted

THD+Noise 0.003% typical at +4dBu, 1kHz, 0dB input gain

Frequency Response 20Hz 20kHz, +/- 0.5dB

Interchannel Crosstalk ; -110 dB, -120dB typical (input-to-output: lt; -100 dB)

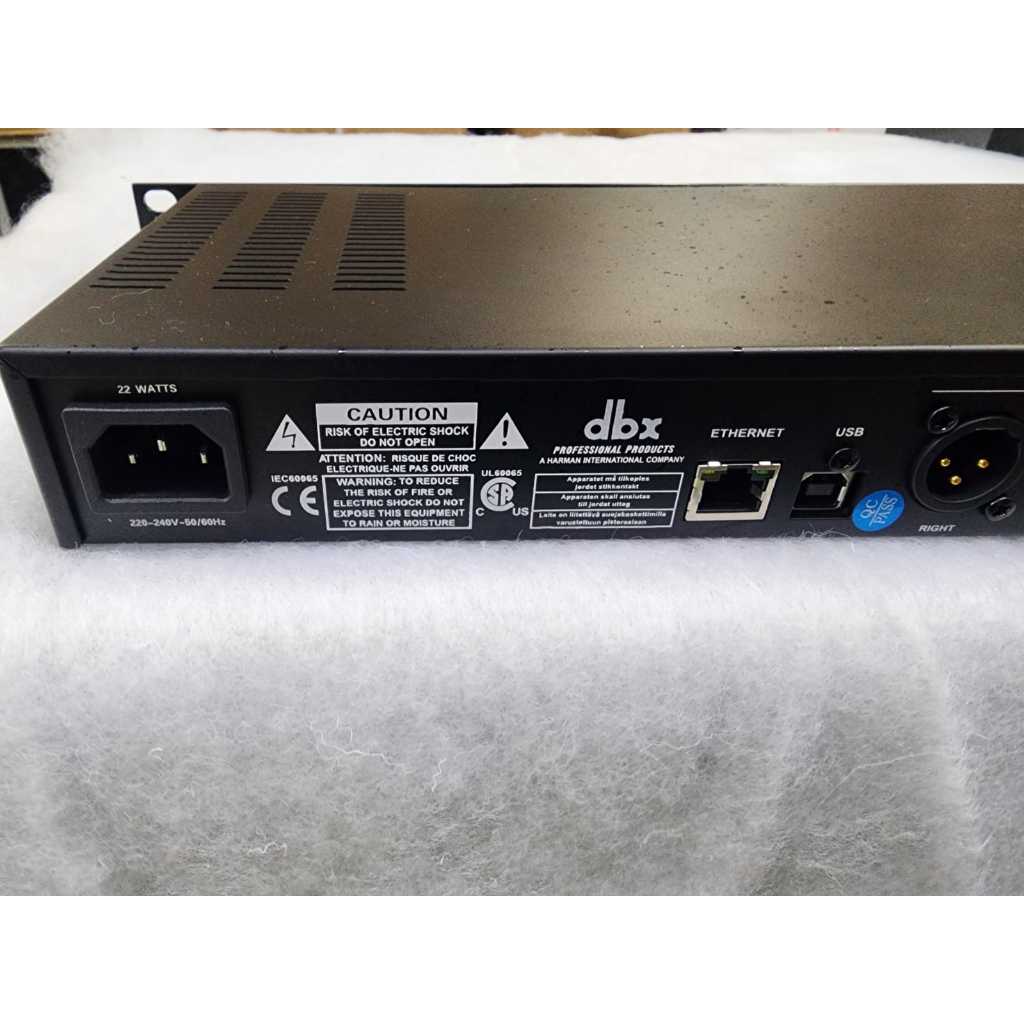

Operating Voltage 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 Hz

Power Consumption 22 W

Unit Weight 5.25 lbs. (2.4 kg)
