Celling Speaker BOSCH LHM 0606 / LHM0606 – Original

Barang yang kami jual

100% Baru

100% Original BOSCH

BOSCH LHM 0606/00 Metal Grile Ceiling Speaker

• Suitable for speech and music reproduction

• Flush-mounting in ceiling cavity

• Easy to install

• Simple power setting

• Optional certified fire dome mounting

• Unobtrusive in virtually all interiors

• Complies with international installation and safety regulations.

Certifications and approvals

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.

Safety : acc. to EN 60065

Technical specifications

Electrical

Maximum power : 9 W

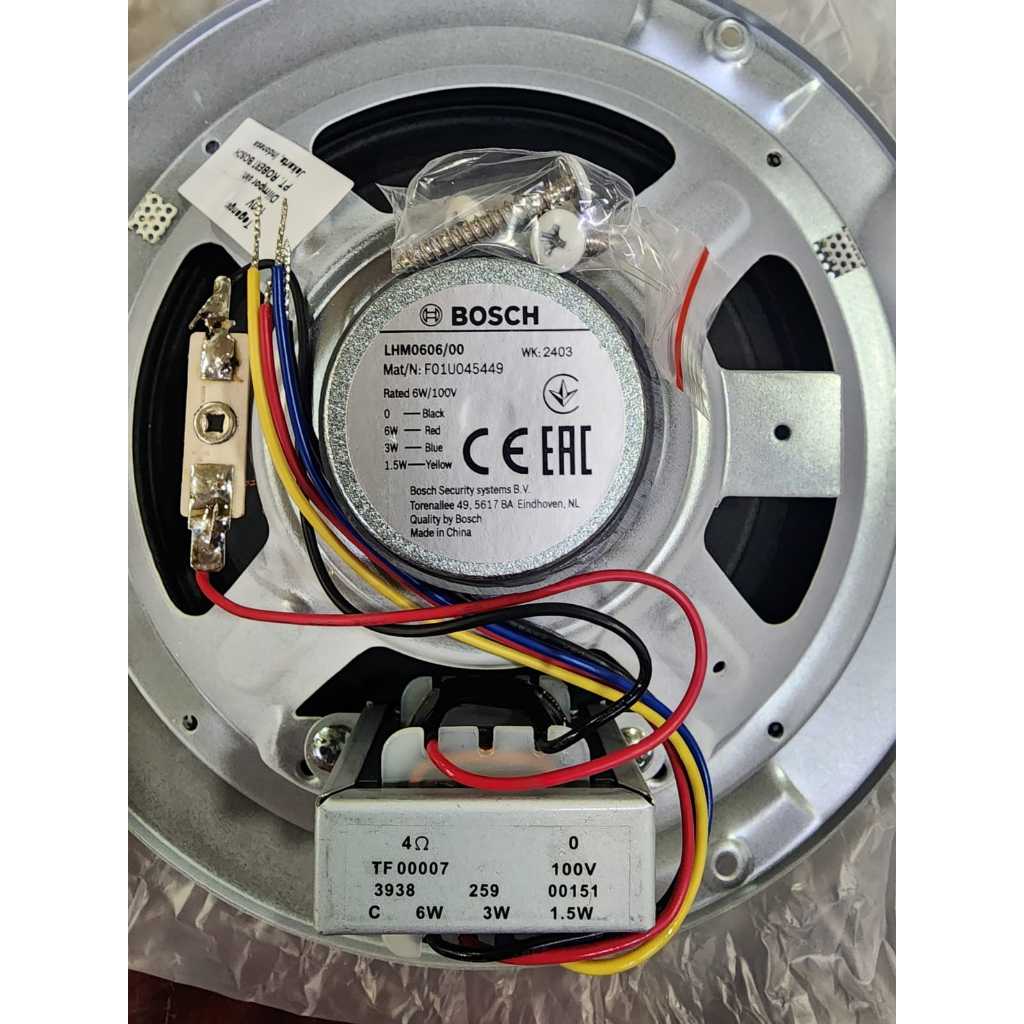

Rated power : 6 / 3 / 1.5 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 94 dB / 86 dB (SPL)

Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 106 dB / 98 dB (SPL)

Effective frequency range (-10 dB) : 80 Hz to 18 kHz

Opening angle at 1 kHz/4 kHz (-6 dB) : 175° / 55°

Rated voltage : 100 V

Rated impedance : 1667 ohm

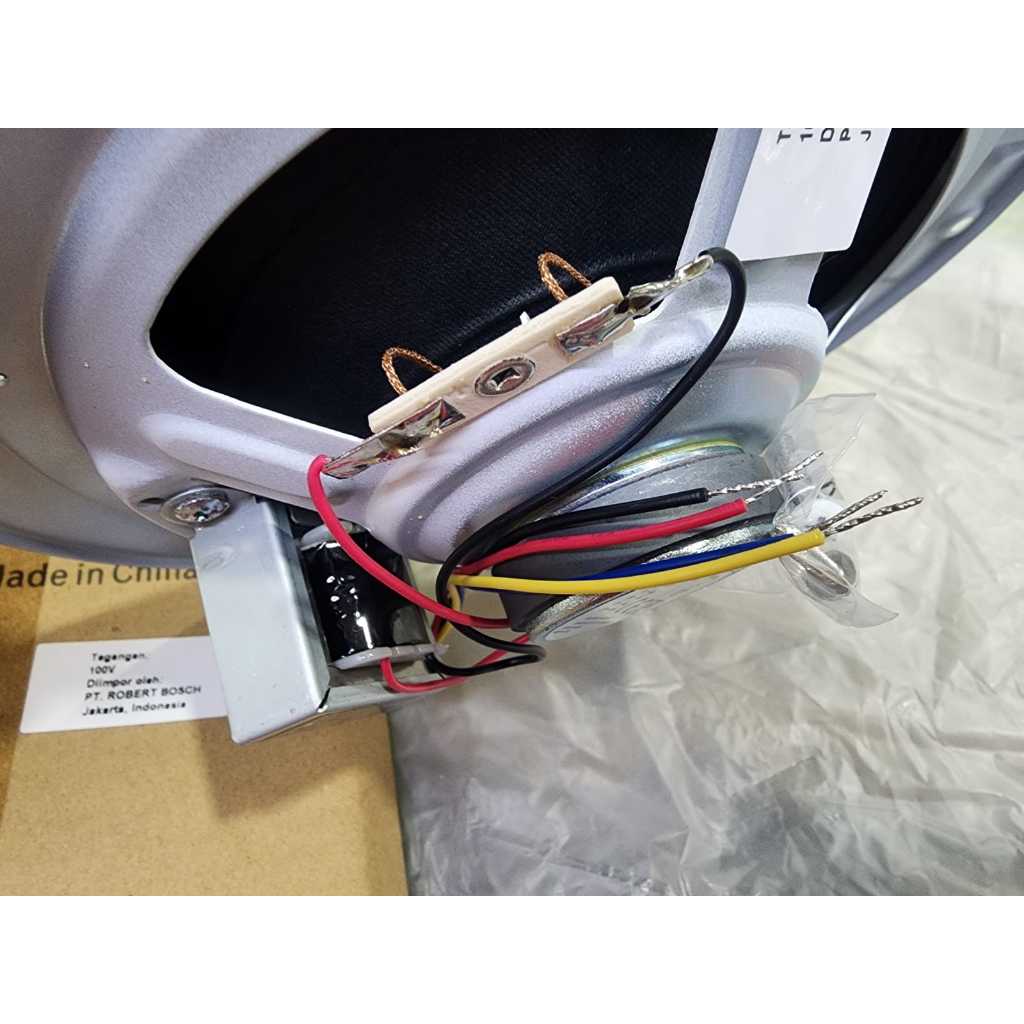

Connection : Flying leads

Mechanical

Diameter : 199 mm (7.8 in)

Maximum depth : 70.5 mm (2.8 in)

Mounting cut-out : 165 + 5 mm (6.5 + 0.20 in)

Speaker diameter : 152.4 mm (6 in)

Weight : 620 g (1.37 lb)

Color : White (RAL 9010)
